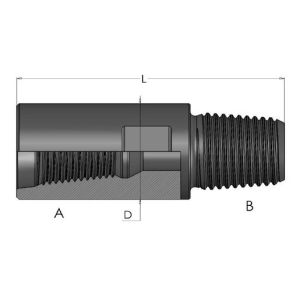

    Tungsten carbide / high strength alloy steel DTH Drilling Tools DTH Sub Female-Male

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : 4148301570-4148301588
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    • Product Details
    • Company Profile

    Tungsten carbide / high strength alloy steel DTH Drilling Tools DTH Sub Female-Male


    Tungsten carbide / high strength alloy steel DTH Drilling Tools DTH Sub Female-Male


    Description


    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

    DTH drilling enables drillers to reach hole depths that are double of what top hammer drilling can do. This is possible with the use of DTH Pipes and DTH Subs.


    • High grade steel used on thread area and main DTH sub body
    • Automated welding and machining processes employed


    Color: Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: DTH Sub Female-Male


    Applications

    • Underground mining
    • Quarry benching operations
    • Water well drilling


    Competitive Advantage


    High strength steel with high fatigue strength and excellent wear resistance


    specification
    1

    <

    Part NumberA ThreadB Thread

    Diameter A

    (mm)

    Diameter A

    (inch)

    Diameter B

    (mm)

    Diameter B

    (inch)

    41483015702 3/8" API Reg2 3/8" API Reg773773
    41483015712 3/8" API Reg2 3/8" API Reg903 1/2903 1/2
    41483015722 3/8" API Reg2 3/8" API Reg10241024
    41483015732 3/8" API Reg2 3/8" API Reg903 1/2903 1/2
    41483015742 3/8" API Reg2 7/8" API Reg953 3/4953 3/4
    41483015752 3/8" API Reg3 1/2" API Reg903 1/21024
    41483015762 3/8" API IF2 3/8" API Reg903 1/2903 1/2
    41483015772 7/8" API Reg2 3/8" API Reg903 1/2903 1/2
    41483015782 7/8" API Reg3 1/2" API Reg903 1/21154 1/2
    41483015793 1/2" API Reg2 3/8" API Reg1154 1/21154 1/2
    41483015803 1/2" API Reg2 3/8" API Reg1154 1/21154 1/2
    41483015813 1/2" API Reg2 7/8" API Reg1154 1/21154 1/2
    41483015823 1/2" API Reg2 7/8" API Reg1154 1/21154 1/2
    41483015833 1/2" API Reg3 1/2" API Reg1154 1/21154 1/2
    41483015843 1/2" API Reg4 1/2" API Reg1465 3/41465 3/4
    41483015854 1/2" API Reg3 1/2" API Reg1465 3/41154 1/2
    4148301586F48x10F42x10592 1/3592 1/3
    4148301587F48x10F48x10592 1/3592 1/3
    4148301588F48x102" API Reg592 1/3592 1/3

    2

    <

    Product Code and Brief Description

    Length

    (mm)

    Length

    (inch)

    Wrench Flat

    (mm)

    Wrench Flat

    (inch)

    Weight

    (kg)

    DTHSFM77/77-1401405 1/2652 5/94
    DTHSFM90/90-1401405 1/2652 5/95.5
    DTHSFM102/102-1301305 1/87637.8
    DTHSFM90/90-1441445 2/3652 5/95.5
    DTHSFM95/95-1301305 1/8652 5/98
    DTHSFM90/102-1201204 5/7953 3/410.5
    DTHSFM90/90-1641646 1/2652 5/96.8
    DTHSFM90/90-1541546652 5/96.5
    DTHSFM90/115-1201204 5/7953 3/411
    DTHSFM115/115-2192198 5/8953 3/412.5
    DTHSFM115/115-1601606 2/7953 3/410.5
    DTHSFM115/115-1601606 2/7953 3/410.8
    DTHSFM115/115-1601606 2/7953 3/410.8
    DTHSFM115/115-1601606 2/7953 3/410.5
    DTHSFM146/146-1321325 1/51204 5/716.5
    DTHSFM146/115-2352359 1/4953 3/419
    DTHSFM59/59-2032038401 4/7-
    DTHSFM59/59-2032038401 4/7-
    DTHSFM59/59-2032038401 4/7-
