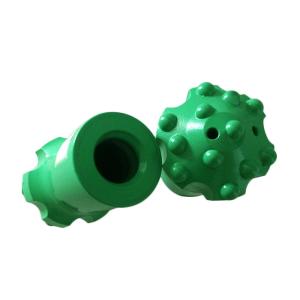

High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling

KSQ Technologies (Beijing) Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling from wholesalers

    Buy cheap High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling from wholesalers
    • Buy cheap High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling from wholesalers
    • Buy cheap High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling from wholesalers
    • Buy cheap High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling from wholesalers

    High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : 4148300989-4148300990
    Delivery Time : 25 days
    Payment Terms : T/T or L/C
    Supply Ability : 20000 pieces per month
    Price : negotiation
    • Product Details
    • Company Profile

    High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling

    High Strength Alloy Steel Dome Reaming Button Bit Green With CNC Milling


    Description


    Rock drilling tools manufacturer KSQ’s rock drill bits: Reaming tools made from high alloy steel and tungsten carbide as same grade as internationally well-known brand
    Apply “hot (thermal) -insertion” processing procedure to insert the buttons as same as internationally well-known brand

    Polit Adaptors with T.C. Tipped head and Reaming Button Bits with diameters 64mm to 102mm(2 1/2”-4”). Other Reaming Equipment is available for larger hole size requirements.


    This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


    • Widely used in drifting and tunneling
    • ST58 thread system


    Color: Green,Blue or Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: ST58 Dome Bit For Reaming Spherical Buttons



    Applications:

    • Underground mining
    • Tunneling


    Features:
    Entire CNC processing procedure ensure the quality consistency
    Military grade requirements of heat-treatment guarantee durability


    Specification

    Part NumberBit Diameter (mm)Bit Diameter (inch)

    Front Buttons

    (No. x mm)

    Gauge Buttons

    (No. x mm)

    414830098915266x169x16
    414830099015262x1418x14

    Product Code and Brief DescriptionAngle

    Front Flushing

    Holes

    Side Flushing

    Holes

    Weight

    (kg)

    RE15152-ST68-S, ST58 Dome Bit For Reaming,

    Spherical Buttons

    35°3-13.0

    RE20152-ST68-S, ST58 Dome Bit For Reaming,

    Spherical Buttons

    35°3310.4
