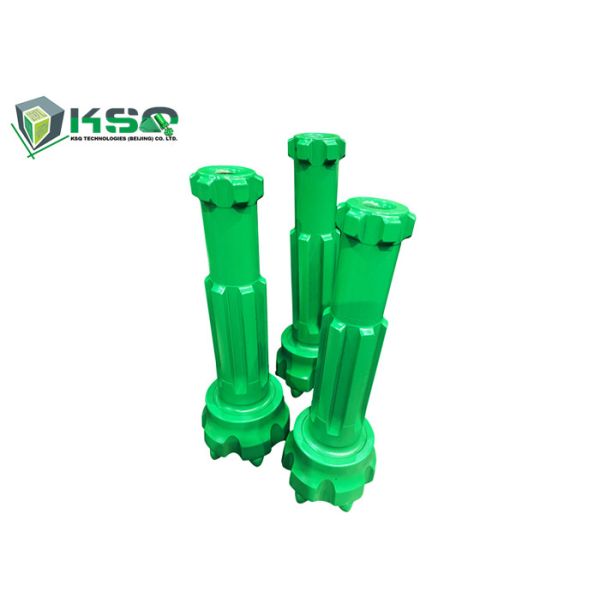

    BR2 76mm Hammer Dth Drill Bits Water Hole Deep Drilling

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : BR2
    Certification : ISO
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000pcs a month
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    BR2 76mm Hammer Dth Drill Bits Water Hole Deep Drilling

    BR2 76mm Hammer Bits Water Hole Deep Drilling DTH Drill Bits


    Description

    DTH bit is the tool cutting rocks, and subject to severe stress from the striking piston as well as from the abrasive cuttings passing the bit at high velocity. When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life.


    The main features are as following:

    1. Simple design of the piston. Long life span.

    2. More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.

    3. Fewer internal parts, simple structure, long life span, less failure and easier to maintain because all the parts are heat treated.

    4. Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multiple steps thread.


    Specification

    BR2 DTH BitNo. Button Diameter
    Head Diameter mmGauge ButtonsFront Buttonsbutton angle

    number of

    flushing holes

    weight

    KG

    Flat faceconvex faceconcave face
    φ766*φ135*φ10//38°2*φ122.3
    φ766*φ132*φ102*φ11/38°2*φ122.3
    φ806*φ132*φ103*φ11/38°2*φ122.4
    φ906*φ132*φ114*φ11/38°2*φ122.6
    φ906*φ136*φ10//38°2*φ122.6
    φ958*φ124*φ12/2*φ1238°2*φ122.8

    BR2 76mm Hammer Dth Drill Bits Water Hole Deep Drilling


    BR2 76mm Hammer Dth Drill Bits Water Hole Deep DrillingBR2 76mm Hammer Dth Drill Bits Water Hole Deep DrillingBR2 76mm Hammer Dth Drill Bits Water Hole Deep DrillingBR2 76mm Hammer Dth Drill Bits Water Hole Deep DrillingBR2 76mm Hammer Dth Drill Bits Water Hole Deep DrillingBR2 76mm Hammer Dth Drill Bits Water Hole Deep Drilling


    RS DTH Bit
    Diameter in mmNO. Air HolesGauge PDC ButtonsFront PDC ButtonsApprox. weightShank style
    8526*φ134*φ125.0 kgsCOP34/COP32/DHD3.5
    9026*φ144*φ125.8 kgsBR3/
    9526*φ145*φ125.9 kgs
    10026*φ146*φ126.1 kgs
    10528*φ136*φ126.3 kgs
    10526*φ145*φ138.6 kgsCOP44/DHD340
    11027*φ146*φ138.8 kgsM40/SD4/QL40
    11527*φ147*φ139.0 kgs
    12028*φ147*φ139.5 kgs
    12728*φ147*φ149.9 kgs
    13327*φ167*φ1415.0 kgsCOP54/DHD350
    14027*φ197*φ1416.5 kgsM50/SD5/QL50
    14628*φ197*φ1417.0 kgs
    15228*φ198*φ1417.8 kgs
    16528*φ198*φ1618.5 kgs
