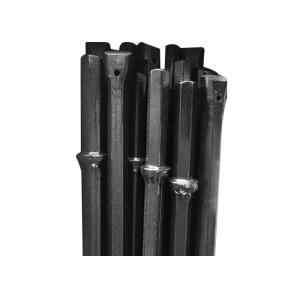

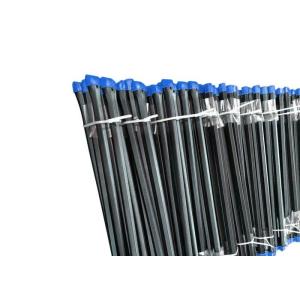

    Chisel Bit Dia42mm H22(7/8") X108mm Integral Drill Steel For Quarrying

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : H22 (7/8") Integral Drill Steels
    Certification : ISO
    Price : Negotiation
    Supply Ability : 20000pcs per month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Chisel Bit Dia42mm H22(7/8") X108mm Integral Drill Steel For Quarrying

    Chisel Bit Dia42mm H22(7/8") X108mm Integral Drill Steel For Quarrying

    Description

    Integral drill steels are crucial for peak productivity in all applications. Our drill steel has a high fatigue strength and toughness, and offers the highest wear resistance that ensures an efficient and economic drilling operation.


    The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.


    • Suitable for small hole range
    • Widely used in Dimensional Stone Quarrying Industry


    Color: Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process

    Type: Chisel Bit Integral Rod Shank H 22 mm x 108 mm


    Applications

    High quality and maximum operational dependability when it comes to small hole drilling applications.
    • Dimensional Stone Quarrying Industry
    • Underground Mining
    • Tunneling


    Competitive Advantage

    • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
    • High grade tungsten carbide inserts


    Specification

    Part NumberProduct Code and Brief Description

    Length

    (mm)

    Length

    (ft/inch)

    Bit Diameter

    (mm)

    Weight

    (kg)

    4148300062

    IH22-C42-400, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    4001 1/3421.8
    4148300063

    IH22-C41-400, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    4001 1/3411.7
    4148300064

    IH22-C29-800, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    8002 5/8293.0
    4148300065

    IH22-C38-800, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    8002 5/8383.1
    4148300066

    IH22-C39-1200, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    12004394.3
    4148300067

    IH22-C36-1600, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    16005 1/4365.2
    4148300068

    IH22-C36-1800, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    18006366.0
    4148300069

    IH22-C32-2000, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    20006 5/9326.7
    4148300070

    IH22-C27-2400, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    24007 7/8278.0
    4148300071

    IH22-C27-3200, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    320010 1/22710.2
    4148300072

    IH22-C32-3200, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    320010 1/23210.3
    4148300073

    IH22-C30-6400, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    6400213020.1
    4148300074

    IH22-C26-8000, Chisel Bit Integral Rod ,

    Shank 22 mm x 108 mm

    800026 1/42625.0
