More Diamonds PQ Casing Shoe Bit Used In Handling Casing Tube
Description:
Rod shoe bits
The casing shoe bit is mainly used in handling casing tube in the
shallow earth surfaces, and we have casing shoes bit in different
hardness to better fit various casing tube bits.
The casing shoe diamond bit is mainly made up of diamond single
crystal steel body, tungsten carbide and polycrystalline diamond.
Main functions of casing shoe
1) Protect casing ends from distortion
2) Help casing pass through stratum to bed rock
3) Carry mud to earth surface
4) Help down-pass of casing when drill rod is in hole
Advantages
More diamonds
Better life
Better performance
Specifications:
| Specification Parameters | | Q Series | T2 Series | T6 Series | T6S Series | | AQ | T2-46 | T6-76 | T6S-76 | | BQ | T2-56 | T6-86 | T6S-86 | | NQ | T2-66 | T6-101 | T6S-101 | | HQ | T2-76 | T6-116 | T6S-116 | | Q | T2-86 | T6-131 | T6S-131 | | PQ | T2-101 | T6-146 | T6S-146 |
|
We supply A-Gauge impregnated core bit:AQ, AW, AGM;
B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;
N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;
H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;
P-gauge impregnated core drilling bit:PQ, PQ3;
TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;
T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131,
T6-146, etc.
Depending on the range of application as well as the cutting media
on the core bits,
MIROC® Rock Drilling and Ground Support Tools include:
--Diamond bits and Reaming shell
--PDC bits and Casing shoes
--Drill rod and Drill tools in Q series
--Core barrel assembly and accessories.
--Diamond tools
Photos:

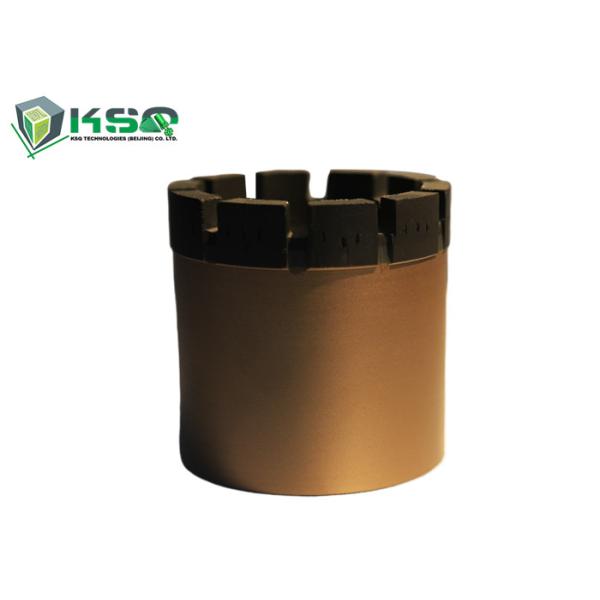

PQ Rod shoe bit
