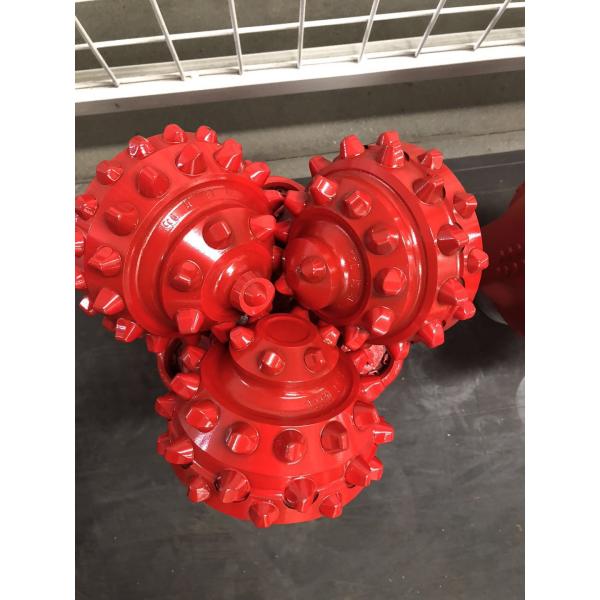

Water Well Drilling Tricone roller bit, milled tooth,7-5/8”dia,for soft to medium hard sandstone and shale
TCI Tricone bits offer a variety of carbide inserts such as
spherically shaped inserts for very hard rock or conically shaped
inserts for softer rock. The number of rows of inserts is directly
related to the type of application and the size of hole to be
drilled. There are also open and sealed bearings available as well
as three types of shirttail protection to choose from. Finally, Focus rotary bits can use both fluid and air circulation.
Main Features
1. There is a Tricone suitable for any rock formation
2. Tricone bit is versatile and can handle changing formations
3. Tri Cones are reasonably priced, long lasting and have an
efficient drilling rate
4. The roller cones have high end sealed bearings; extremely high
quality tungsten carbide and diamond gauge protection throughout
the drill bit as well as skirt tail hard facing and optimized
hydraulics. These roller cone drill bits are designed to go to
extreme depths in extreme conditions and in situations where they
cannot fail.
Specification information
IADC code (the main) | 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 536 535 537 547 |
| Available size | From 2 7/8” to 26” Larger sizes for hole opener bit,reamer bit |
| Bearing type | Sealed bearing and non-sealed bearing HJ(metal sealed journal bearing) HA(rubber sealed journal bearing) aircooled bearing type |
| Formation or layer | Soft, medium soft, hard, medium hard, very hard formation |
Button size (extra fratures) | Button bit,saw steel 1) Y-Conical teeth 2) X- chisel teeth 3) K- wide teeth 4) G- Gauge protection |
| Material | Tungsten Carbide |
| Delivery terms | By sea or by air |
| Application | Petroleum & gas,water well, mining and tectonic industries,oil
field, construction,geothermal,directional boring, and underground foundation work |
| Packing | wooden case |
| Payment Term | T/T (30% downpayment and 70%balance before shipping.) |
| MOQ | 1 Piece |
| Supply Ability | 1000 Pieces/month |
| Delivery Time | within 10-15 work days
|
FAQ
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or
by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before
shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours
(Holidays Excluded)
b. Technical Support will be available at any time
c. Free replacement will be provided once the failure confirmed
caused by our product quality
If you have any other questions, pls feel free to contact us.
