    24m3 TT Series Ceramic Vacuum Filter With High Efficient For Separate Mine Slurry

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : Ceramic Filtering Plate
    Certification : ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, , D/P
    Supply Ability : 50 Sets per month
    Delivery Time : 15-25days after receiving payment and order confirmation
    • Product Details
    • Company Profile

    24m3 TT Series Ceramic Vacuum Filter With High Efficient For Separate Mine Slurry

    24m3 TT Series Ceramic Vacuum Filter With High Efficient For Separate Mine Slurry


    Ceramic Vacuum Filter has been widely used in copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth concentrate, tailings dewatering, Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment.
    The fineness of materials is from -200 to -450 and a variety of superfine materials.


    Parameters and Specification:

    Basic Information of Filter Plate
    NameParameters
    Water flux(pure water pressure 0.15MPa)≥6400L /h.m2
    Pneumatic back flush test pressure≥0.5Mpa
    Assembly precisionAssembly ring plane and plate surface parallelism±0.2mm
    Assembly ring plane and the plate spacing8±0.1mm
    Installation disk precisionAssembly hole center and diagonal error≤2mm
    Each plate spacing for disk5±1mm
    The membrane surface abrasion total time (without scraper or other hard objects damage)≥7000h
    Poriness≥42%
    Bore diameter2um-10um
    Breaking strength

    ≥30Mpa

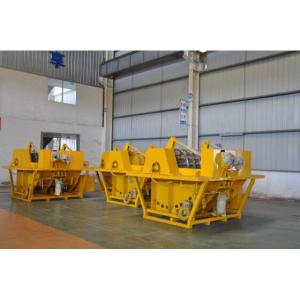

    Products picture:

    24m3 TT Series Ceramic Vacuum Filter With High Efficient For Separate Mine Slurry


    Characteristics of Ceramic Vacuum Filter :

    1. High vacuum degree(0.09-0.098MPa), filter cake has low water content.

    2. Solid content of liquid the maximum is 25ppm, repeated application is available,drainage is lessened.

    3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.

    4. Filter cake cleaning process is added to clean proper materials.

    5. It combines PLC, computer and automatic valve control with high automatization.

    6. Compact structure,covering less floor area,conventient installation and maintenance.

    7. Advanced drainage system fits for any working conditons.


    Application at site for Ceramic Filter:


    TT Series High Efficient Ceramic Vacuum Filter 24m3 For Separate Mine Slurry


    Tag: Ceramic Filter
