4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed

KSQ Technologies (Beijing) Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed from wholesalers

    Buy cheap 4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed from wholesalers
    • Buy cheap 4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed from wholesalers
    • Buy cheap 4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed from wholesalers

    4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed

    Ask Lasest Price
    Brand Name : Mirco
    Model Number : Tricone Rock bit
    Certification : SGS,ISO
    Price : negociated one
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

    4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed

    4-1/8" Tricone Rock bit for Cement & Bridge plug Drilling,

    2 3/8” API Reg. Pin connection


    Product Description
    (1) Cutting Structure of this series tricone rock bit :
    The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.

    (2) Gauge Structure of this series tricone rock bit :
    Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

    (3)Bearing Structure of this series tricone rock bit :
    High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.

    (4)Seal and Lubrication of this series tricone rock bit :
    The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.


    Product Name4-1/8" Tricone Rock bit
    ApplicationCement & Bridge plug Drilling,
    FormationSuch As medium soft shale,limstone and sandstone,hard streaks,etc.
    Bit Size4-1/8"
    Metal materialHigh manganese steel and tungsten carbide alloy
    Connection2 3/8” API Reg
    OEMOEM is accepted
    Weight6 Kg
    After saleWe provide technical support.
    Type of shippingAir transport, Marine transportation, Land transport
    ServiceOEM serive offered
    Structural featureSealed journal bearing gage protection.

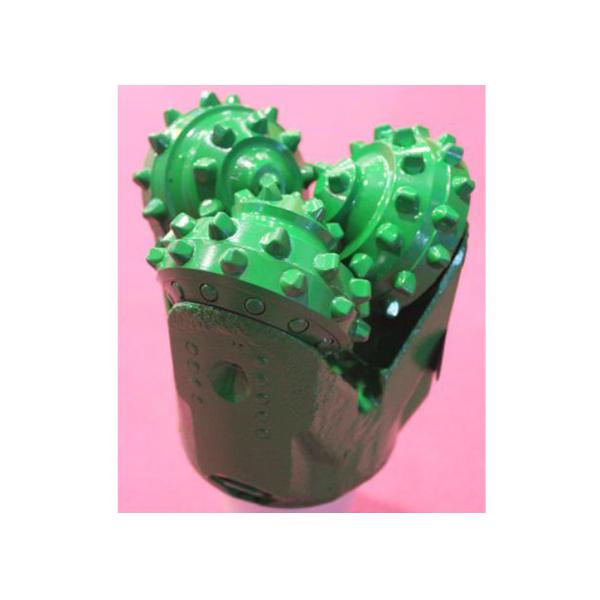

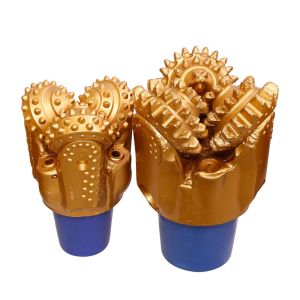

    Pictrue


    4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed

    4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed


    Feature

    4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed

    Structure

    4-1/8" Tricone Roller Bit , Well Drilling Equipment SGS ISO Listed

    Packaging & Shipping

    1. Delivery time: around 15-20days

    2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

    Bulk order: we suggest by air or by sea.

    3. Package : Carton or Wooden Box
