QL40 Shank DTH Button Bit with Flat / Convex / Concave Face

KSQ Technologies (Beijing) Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap QL40 Shank DTH Button Bit with Flat / Convex / Concave Face from wholesalers

    Buy cheap QL40 Shank DTH Button Bit with Flat / Convex / Concave Face from wholesalers
    • Buy cheap QL40 Shank DTH Button Bit with Flat / Convex / Concave Face from wholesalers

    QL40 Shank DTH Button Bit with Flat / Convex / Concave Face

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : DTH Button Bit
    Supply Ability : 20000 pieces per month
    Delivery Time : 25 days
    Price : negotiation
    • Product Details
    • Company Profile

    QL40 Shank DTH Button Bit with Flat / Convex / Concave Face

    QL40 Shank DTH Button Bit with Flat / Convex / Concave Face


    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

    Basic Information


    Product

    DTH Button Bits

    Low Air PrussureCIR80, CIR90

    3'' High Air Prussure

    DHD3.5, M30,

    4'' High Air Prussure

    DHD340, SD4,QL40, M40

    5'' High Air Prussure

    DHD350, SD5,QL50, M50

    6'' High Air Prussure

    DHD360, SD6,QL60, M60

    8'' High Air Prussure

    DHD380, SD8,QL80, M80

    Color

    Green, Gold, Black or based on customer requirements.

    MOQ:

    No MOQ required for testing and trial order


    Applications

    • Underground mining
    • Down the hole rock drilling

    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


    QL40 High Air Pressure DTH utton Bit Specification:

    DiameterButtons and Size (mm)Flushing holeWeightPart Number
    mminchFrontGaugekg
    Spherical button/Concave face
    1154 1/24×14,2×148×142104148301272
    1214 3/44×14,2×148×142114148301273
    12754×14,3×148×142124148301274
    1305 1/84×14,3×148×162144148301275
    1335 1/44×14,4×148×162154148301276
    Ballistic button/Convex face
    1104 3/84×14,2×148×1429.34148301277
    1154 1/24×14,2×148×142104148301278
    1214 3/44×14,2×148×142114148301279
    12754×14,3×148×142124148301280
    1305 1/84×14,3×148×162144148301281
    1335 1/44×14,4×148×162154148301282
    Spherical button/Flat face
    1104 3/86×148×142104148301283
    1154 1/26×148×14210.34148301284
    1214 3/46×148×14210.64148301285
    12757×148×14211.54148301286
    1305 1/87×148×162124148301287
    1335 1/47×148×16212.64148301288


    We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

    Keywords

    DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
    Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit

    Pictures

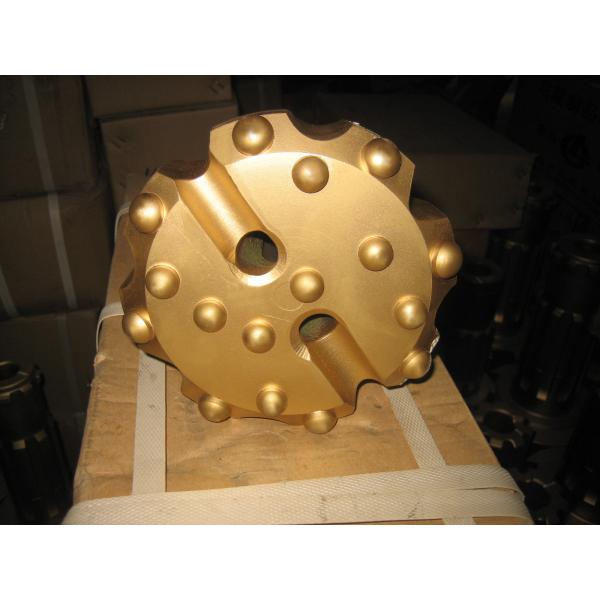

    QL40 Shank DTH Button Bit with Flat / Convex / Concave Face
