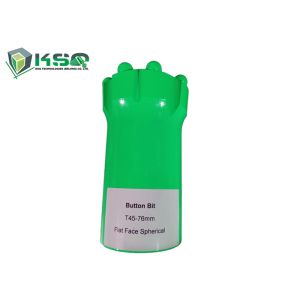

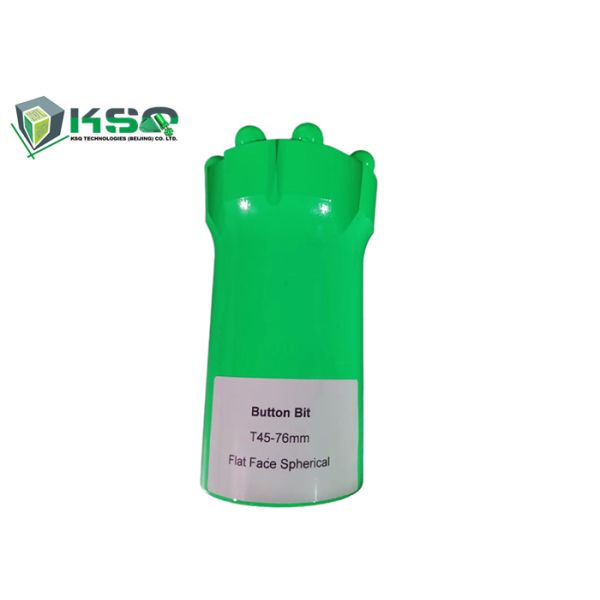

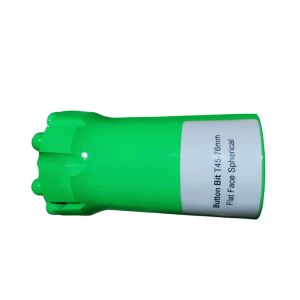

    Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : T45-76mm
    Certification : ISO
    Supply Ability : 3000
    Delivery Time : 20-30
    • Product Details
    • Company Profile

    Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit

    Description
    Our thread button drill bit size from 33mm-178mm, include thread type R28, R32, R38, T38, T45, T51, ST58, ST68 etc for kinds of button bit, reaming button bit, retract button bit, drop centre retract button bit.
    The button shapes of our button bits are spherical, ballitic, conical for customers to choose.
    The buttons can be hot insert to the body and welded to the body as per custmers need and many kinds of good materials are available.


    Advantage
    1. High Quality
    2. Reasonable Price
    3. High Efficiency
    4. Delivery On Time

    Application
    The button bit is widely used for rock drilling, blasting holes and other drill works in quarries, coal mines,
    road and dam constructions and other similar projects.


    Specification of button bits

    Thread Button Bit

    Diameter

    Carbide size(mm)

    Flushing hole

    Weight

    mm

    in

    Front

    Gauge

    Front

    Side

    (kg)

    Qty×size

    Qty×size

    R/T38 (1 1/2")

    64

    2 1/2

    3×11

    6×12

    2

    1

    1.62

    70

    2 3/4

    4×10

    8×10

    2

    1

    1.98

    76

    3

    4×11

    8×12

    2

    1

    2.28

    89

    3 1/2

    6×11

    8×12

    2

    2

    3.32

    T45 (1 3/4")

    70

    2 3/4

    4×10

    8×10

    2

    1

    2.24

    76

    3

    4×11

    8×12

    2

    1

    2.46

    89

    3 1/2

    6×12

    8×14

    2

    2

    3.52

    102

    4

    7×12

    8×14

    2

    2

    4.46

    115

    4 1/2

    8×12

    8×14

    2

    2

    6.68

    T51 (2")

    76

    3

    4×12

    8×12

    2

    1

    3.62

    89

    3 1/2

    6×12

    8×14

    2

    2

    4.48

    102

    4

    7×12

    8×14

    4

    1

    5.26

    115

    4 1/2

    8×12

    8×14

    4

    1

    7.62

    127

    5

    9×12

    8×16

    4

    1

    8.58

    Applications of rock drilling tools
    • Underground mining
    • Tunneling,quarrying

    Competitive Advantage
    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
