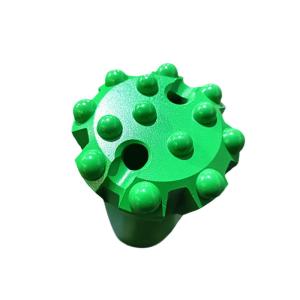

    T-WIZ60 102mm Threaded Button Rock Drill Bit

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : T-WIZ60 102mm Button Drill Bit
    Certification : ISO
    Delivery Time : 20-30
    • Product Details
    • Company Profile

    T-WIZ60 102mm Threaded Button Rock Drill Bit

    Products Description

    Thread button dril bits are made by high quaty aloy steel bar and tungsten carbides. Through heat treatment, our driling tools are tough enough to meet rock drlingdemands and have the least loss of energy while driling the rocks.Besides,we can design customized thread buton dillbits according to diferent diling application, andcustom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.


    Rock DrllThread Buton its is suitable forR22,R25,R28, R32, R35, R38, T38,T45,T51,$T58, T60 rock drilrods .t's widely used for hard rock dirling
    use.
    1)Thread connection:R22,R25,R28,R32,R35,R38,T38,T45,T51,ST58,GT60
    2) Alloy steel:42CrMo
    3)Suitable carbide tips:YK05
    4)Technology:hot-pressing or welding


    Before Official Order, please confirm below informations:
    (1) Thread Type
    (2)Standard or Retrac
    (3)Bit button shape (tip shape)--Spherical or Ballistic
    (4)Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...


    Diameter

    No.of
    buttons

    Buttons x button diameter (mm)

    Gauge
    buttons
    angle°

    Flushing hole

    Weight
    аpprox
    kg

    mm

    inch

    Gauge

    Centre

    Side

    Centre

    BUTTON BITS-Spherical buttons

    95

    3 3/4

    13

    8x14.5

    4x12,7 1x12.7

    35°

    -

    4

    6,0

    102

    4

    13

    8x14.5

    4x12.7, 1x12.7

    35°

    -

    4

    6,6

    102

    4

    13

    8x14,5

    4x12,7, 1x12.7

    35°

    -

    4

    6,6

    115

    4 1/2

    14

    8x15,8

    4x14,5, 2x14.5

    35°

    -

    4

    8,9

    115

    4 1/2

    14

    8x15,8

    4x14,5, 2x14,5

    35°

    -

    4

    9,4

    127

    5

    14

    8x15.8

    4x15,8, 2x14.5

    35°

    -

    4

    11,3

    127

    5

    14

    8x15,8

    4x15,8, 2x14.5

    35°

    -

    4

    11,3

    140

    5 1/2

    16

    8x19.1

    4x15,8, 4x15,8

    35°

    -

    4

    15,0

    140

    5 1/2

    16

    8x19.1

    4x15,8, 4x15,8

    35°

    -

    4

    15,0

    152

    6

    16

    8x19,1

    4x15,8, 4x15.8

    35°

    -

    4

    13,1

    152

    6

    16

    8x19.1

    4x15,8, 4x15,8

    35°

    -

    4

    18,1

    BUTTON BITS - Ballistic buttons

    92

    3 5/8

    13

    8x14.5

    4x12,7 1x12.7

    35°

    -

    4

    4,7

    92

    3 5/8

    13

    8x14,5

    4x12,7, 1x12.7

    35°

    -

    4

    4,5

    95

    3 3/4

    13

    8x14.5

    4x12,7, 1x12,7

    35°

    -

    4

    5,9

    102

    4

    13

    8x14.5

    4x12.7. 1x12,7

    35°

    -

    4

    6,6

    115

    4 1/2

    14

    8x15.8

    4x14,5,2x14.5

    35°

    -

    4

    9,5

    127

    5

    14

    8x15.8

    4x15,8.2x14.5

    35°

    -

    4

    11,3

    140

    5 1/2

    16

    8x19.1

    4x15,8,4x15.8

    35°

    -

    4

    15,0
